Ashdown ORIGINAL-EVO-300 Head

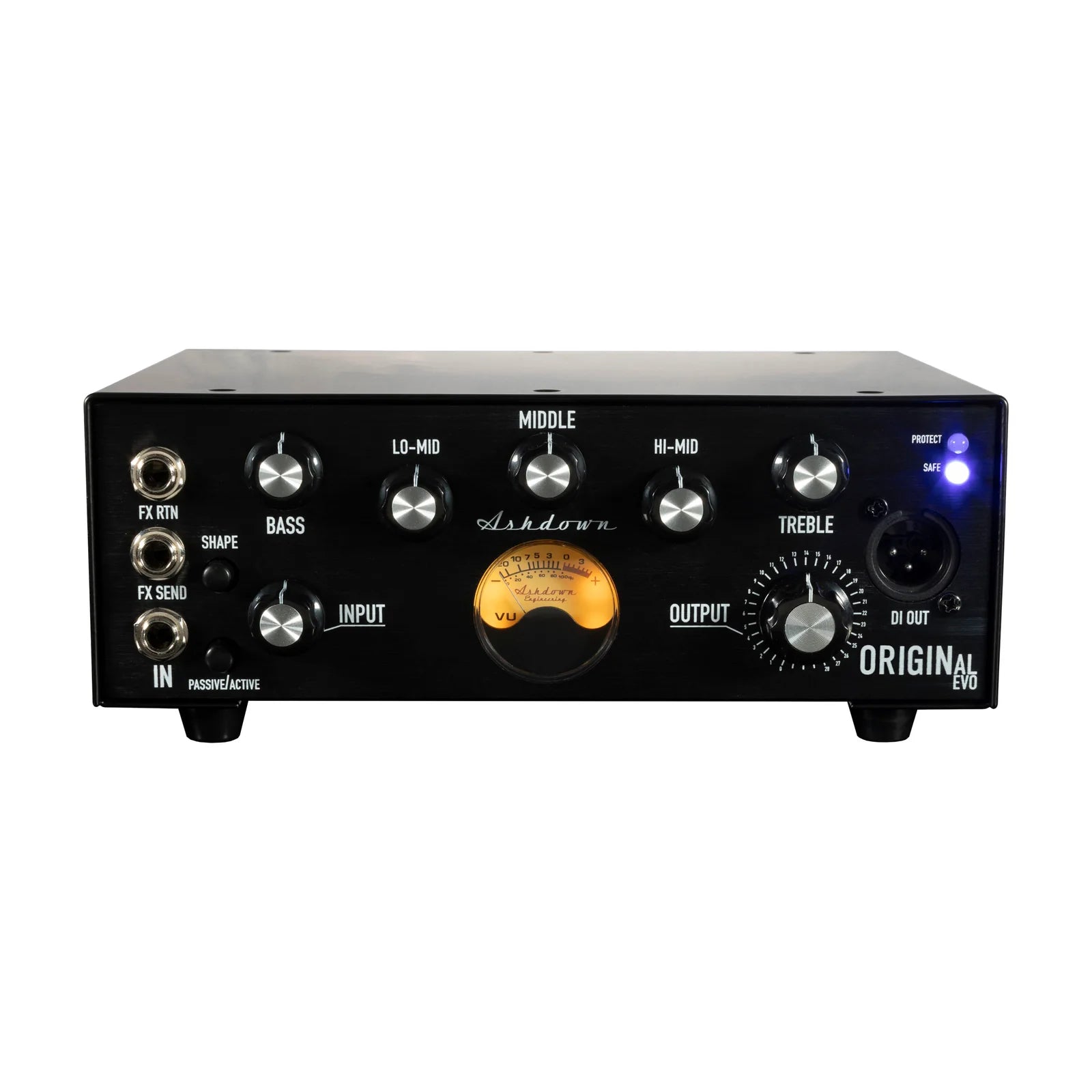

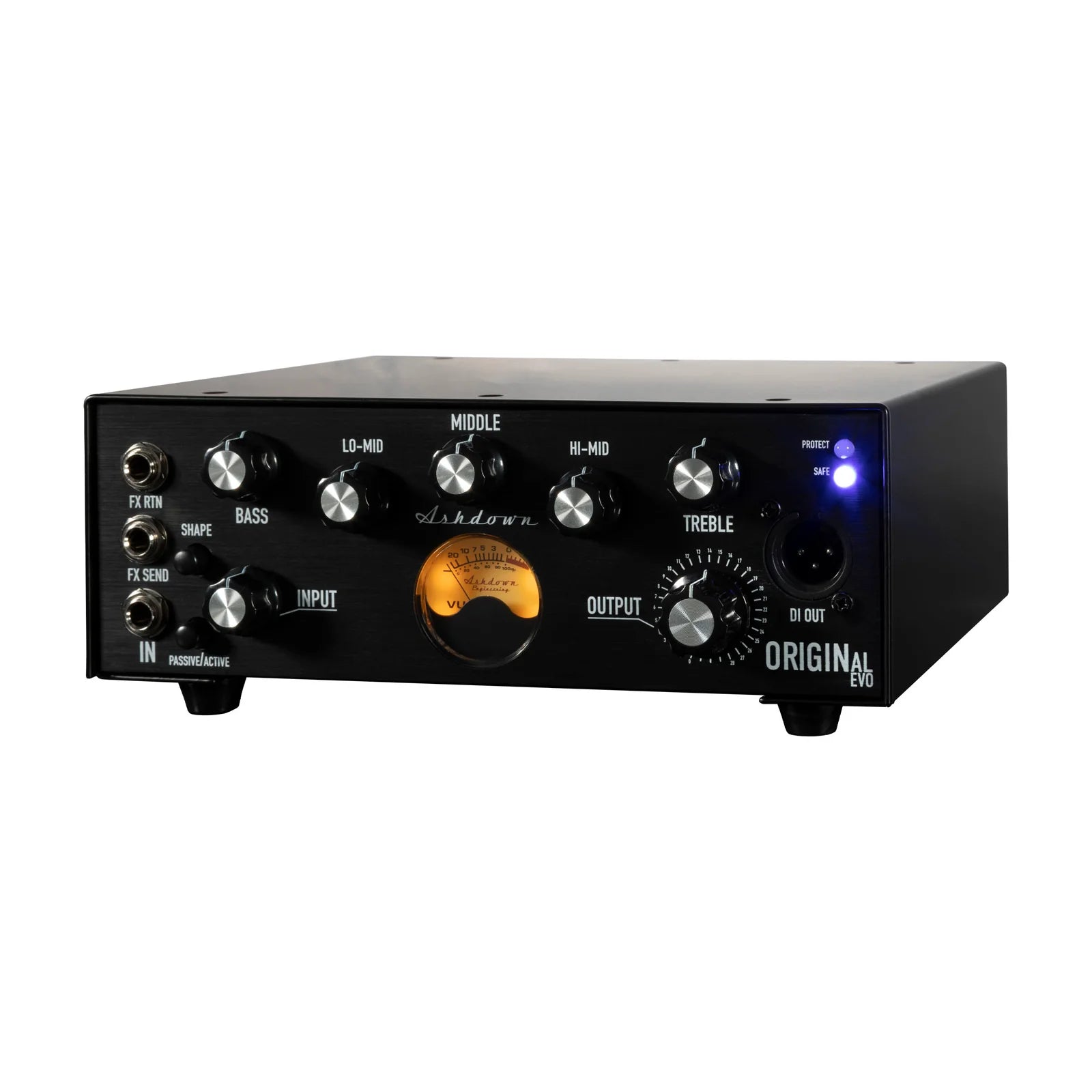

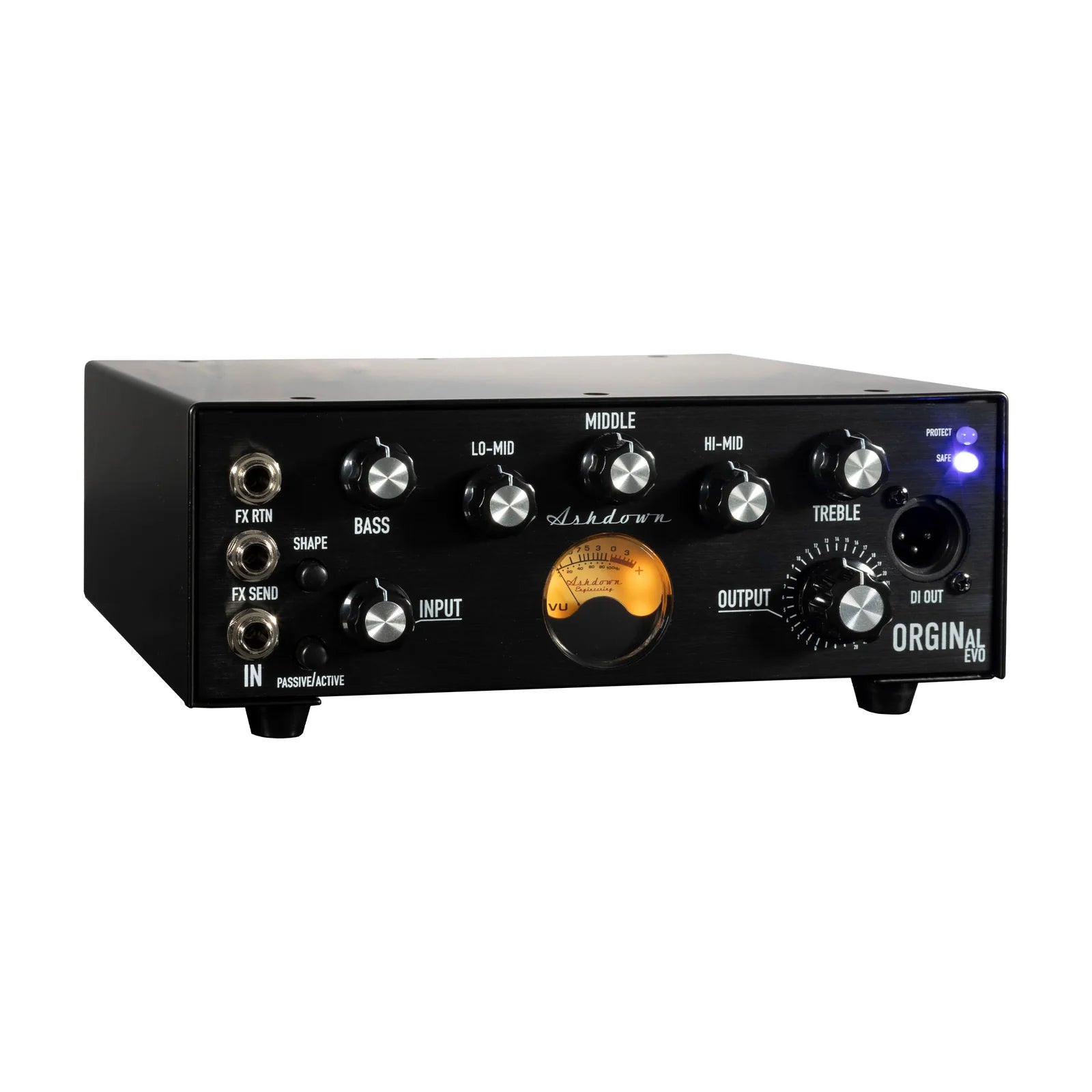

Elevate your bass playing with the Ashdown OriginAL EVO Mini Bass Head, a sleek and powerful amplifier that offers 300 Watts of pure, portable bass excellence. With its 5-band EQ, modern conveniences like an effects loop and XLR DI output, and a rugged design, this amp head is the ultimate companion for gigging bassists.

SPECIFICATION
Power Output - 300 Watts
Power Requirements - 115-230 Volts
Speaker Outputs - 2 x Jack outputs
Frequency Response - -3dB @ 22Hz and 25KHz
High Instrument Input - Impedance 3.9m Ohms, input range 150mV - 20 p-p
Low Instrument Input - Impedance 1M Ohms, input range 150mV - 10V p-p
Line Input - Impedance 10k Ohms, input range 300mV - 40V p-p
DI Output - 600 Ohm balanced, Level -20dBu nominal

Impedance - Minimum 4 Ohms
Signal to noise- Better than 80dB (EQ flat)
EQ - Bass +/-15dB @ 100Hz, Lo Mid +/-15dB @ 220Hz, Middle +/-15dB @ 660Hz, Hi Mid +/-15dB @ 1.6kHz, Treble +/-15dB @ 7kHz shelving
Effects Send - Impedance 22k Ohm, Level 0dBu nominal
Effects Return - Impedance 22k Ohms, Input Level 0dBu Nominal
Distortion - Less than 0.5% THD
H x W x D (mm) - 89 x 220 x 209
Weight (kg) - 1.8
